Veris Industries U001-0022

Артикул: U001-0022
Изготовитель: Veris Industries
✅ Под заказ
ЗАКАЗАТЬ ЗАКАЗАТЬ

Технические характеристики U001-0022

Раздел
Датчики расхода
Подраздел
Veris Industries
Вес
  • Description: Flow Meter,SDI,Hot Tap,SS,1.5-10, 4-20mA,no dsp
  • Material: Stainless Steel
  • Port Size: 1-1/2 "
  • Accuracy: 1 %
  • Maximum Pressure: 1,000 psi
  • Net Weight: 0 lbs
  • Gross Weight: 0 lbs
  • Manufacturer Part Number: U001-0022
  • Manufacturer: Veris Industries
  • Product Series: SDI
  • Family Series: Veris Industries Sensors, SDI Series
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение, учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?

Если вы не нашли продукцию бренда Veris Industries на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.

Заказать товар Заказать товар
Veris Industries U001-0022

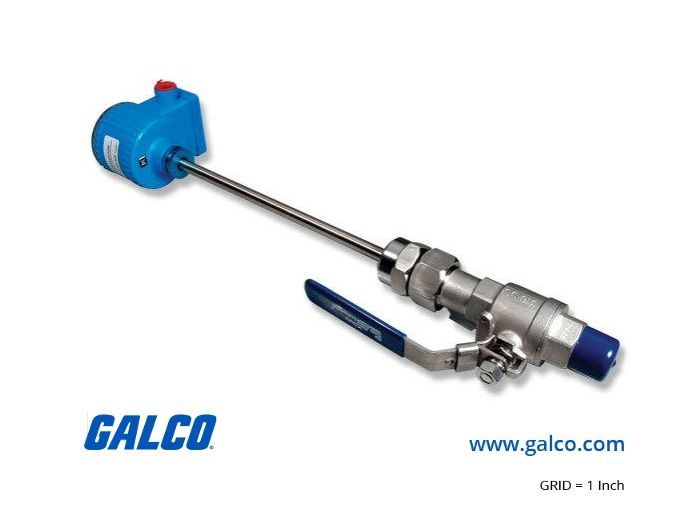

Sensors, SDI Series Item # U001-0022 Flow Meter,SDI,Hot Tap,SS,1.5-10, NEMA 4 housing Multiple outputs Viton O‑ring seal standard Highly durable APPLICATIONS: Flow measuring projects True hot tap installations BTU applications (requires temperature sensors and\transmitter/monitor) The direct insert style liquid flow sensor with stainless steel/PPS plastic or PEEK plastic tip combines flow sensing with a built‑in transmitter for an all‑in‑one flow measuring system.This device fits all 1‑1/2" to over 36" (38 to 915 mm) pipes,and it is intended for direct installation into the pipe through a 1" NPT hole.This sensor is available with or without hot tap capability.In the hot tap installation,the sensor is mounted in the pipe under pressure by attaching a service saddle or weld‑on fitting to the pipe.Then the sensor assembly is attached to an isolation valve and extended into the pipeline to measure flow.Hot tap installations are often required in retrofit projects,but even in new construction,a hot tap sensor can be desirable for service considerations.Software and programming cable are required to operate these meters.If the meter will be used for hot tap installation.
