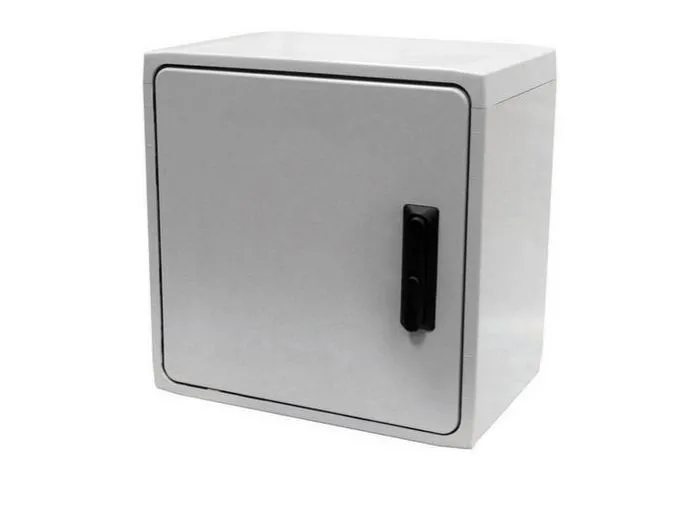

Vynckier Enclosure Systems PSG2020A

Артикул: PSG2020A
Изготовитель: Vynckier Enclosure Systems
✅ В наличии
ЗАКАЗАТЬ ЗАКАЗАТЬ

Технические характеристики PSG2020A

Раздел
Настенное крепление
Подраздел
Vynckier Enclosure Systems
Вес
  • Manufacturer Part Number: PSG2020A
  • Manufacturer: Vynckier Enclosure Systems
  • Product Series: Polysafe
  • Family Series: Vynckier Enclosure Systems Enclosures, Polysafe Series
  • Description: Polysafe W/ Full Gasketed Window
  • Material: Fiberglass
  • Composition: Non-Metallic
  • Number of Doors: 1
  • Cover Design: Hinged
  • Window/Clear Cover: Yes
  • Latching Mechanism: 5 Point Latching Handle
  • Panel Included: No
  • NEMA Rating: NEMA 12, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 3S
  • Nominal Height: 20 "
  • Nominal Width: 20 "
  • Nominal Depth: 13 "
  • Approvals: CSA, UL
  • Net Weight: 25 lbs
  • Gross Weight: 25 lbs
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение, учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?

Если вы не нашли продукцию бренда Vynckier Enclosure Systems на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.

Заказать товар Заказать товар
Vynckier Enclosure Systems PSG2020A
Enclosures, Polysafe Series Item # PSG2020A Polysafe W/ Full Gasketed Window UL 3, 3R, 3S, 4, 4X, 12, 12K, 13 Fiberglass‑Reinforced Polyester Construction Enclosures are Lightweight, Maintenance‑Free, and Corrosion Resistant Contains a (PUR) continuously poured polyurethane gasket Easily Modified with Conventional Tools Such as a Drill, Milling Equipment, Saw, or Punch Two Depth Extensions may be Added while Retaining UL Rating Polysafe Series enclosures are available in 14 standard sizes, ranging from 20 x 20 inch to 50 x 40 inch with a single depth of 12‑1/2 inch. The entire Polysafe enclosure series is 4mm thick, halogen free, hot compression‑molded fiberglass‑reinforced polyester, and are self‑extinguishing. Temperature resistant from a constant ‑59°F to +302°F and momentary temperature to +392°F. Doors are mounted on internal hinges and the latches have a 5‑point internal latching mechanism. The Polysafe Series is ideal for both indoor and outdoor applications. Vynckier's in‑mold coating procedure assures extended performance during greater than normal exposure to UV rays. Standards: IEC 60529 EN 60529 EN 50102 EN 50298 IEC 60439‑5 Approvals: UL and CSA RoHS Compliant Cabinets with one or two doors: 3, 3R, 3S, 4, 4X, 12, 12K, 13 Coupled Cabinets: 3, 3R, 3S, 4, 12, 12K, 13
