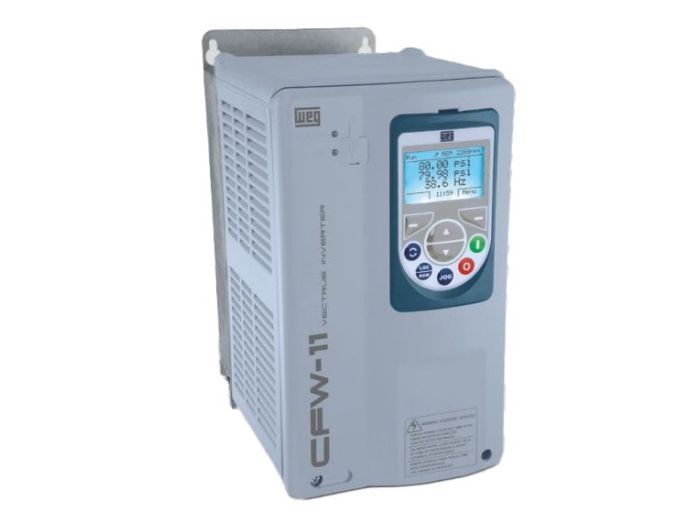

WEG Electric CFW110016T2O55DSZ
Артикул:
CFW110016T2O55DSZ
Изготовитель:
WEG Electric
✅ В наличии
ЗАКАЗАТЬ
ЗАКАЗАТЬ
Технические характеристики CFW110016T2O55DSZ
Раздел
Приводы систем ОВК
Подраздел
WEG Electric
Вес
-
Manufacturer Part Number: CFW110016T2O55DSZ
-
Manufacturer: WEG Electric
-
Product Series: CFW11
-
Family Series: WEG Electric HVAC Drives, CFW11 Series
-
Description: INVERTER NACFW110016T2O55DSZ
-
Nominal Input Voltage: 208 VAC, 240 VAC
-
Phase: 3
-
Amps (Variable Torque Rating): 16 A
-
AC Voltage: 200-240 VAC
-
Closed Loop: Yes
-
Operator Controls: Built In
-
IP Rating: IP55
-
Motor Control-Max Level: Closed Loop Vector
-
Mounting: Panel
-
Frequency: 60 Hz
-
Enclosed: Yes
-
Disconnect Type: Switch
-
Net Weight: 22.22 lbs
-
Gross Weight: 22.22 lbs
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о
стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение,
учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?
Если вы не нашли продукцию бренда WEG Electric на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.
Заказать товар
Заказать товар
WEG Electric CFW110016T2O55DSZ
HVAC Drives, CFW11 Series
Item #
CFW110016T2O55DSZ
INVERTER NACFW110016T2O55DSZ
Plug and play philosophy (connect and use) enables quick and easy installation of accessories and options.
USB for microcomputer connection for using SUPERDRIVE programming and monitoring software as well as updating inverter firmware.
Human‑Machine Interface (HMI) with backlit graphic display and softkeys, greatly facilitates inverter programming and operation.
DC link inductors (symetrically connected to positive and negative DC link terminals) enable compliance with IEC61000‑3‑12 standard requirements regarding harmonics, (no need for external line reactance)
Intelligent thermal management enables full protection of IGBTs, monitoring of heatsink and internal air temperature.
Automatic control of the heatsink fan with speed sensor (additional protection) and easily detachable from the unit for cleaning and maintenance.
Normal Duty and Heavy Duty ratings to adapt optimally to all kinds of loads.
Protection with failure and alarm warnings.
Motor overload protection in compliance with IEC 60947‑4‑2/UL 508 C.
Memory card built into the standard product allows user to create functions without the need to use an external PLC (soft‑PLC via IEC61131‑3 programming software)
Guided start‑up simplifies initial user programming.
Real time clock
TRACE/SCOPE function to assist with the start‑up and system diagnostics.
