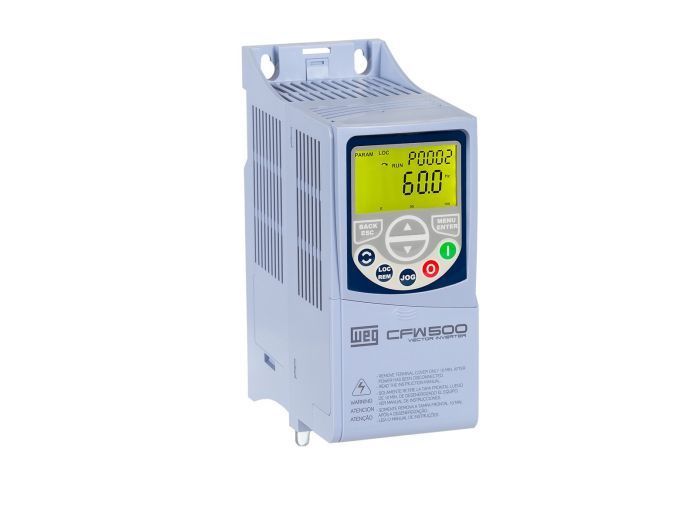

WEG Electric CFW500D24P0T4DB20

Артикул: CFW500D24P0T4DB20
Изготовитель: WEG Electric
✅ В наличии
ЗАКАЗАТЬ ЗАКАЗАТЬ

Технические характеристики CFW500D24P0T4DB20

Раздел
Переменный ток
Подраздел
WEG Electric
Вес
  • Manufacturer Part Number: CFW500D24P0T4DB20
  • Manufacturer: WEG Electric
  • Product Series: CFW500
  • Family Series: WEG Electric Drives, CFW500 Series
  • Description: CFW500 24A 15HP DB 3PH 460V, J2
  • Phase: 3
  • HP (Constant Torque Rating): 5 hp
  • HP (Variable Torque Rating): 5 hp
  • Amps (Constant Torque Rating): 24 A
  • Amps (Variable Torque Rating): 24 A
  • Brake: Dynamic Braking Transistor Included
  • Closed Loop: Yes
  • Operator Controls: Built In
  • Motor Control-Max Level: Open Loop Vector (Sensorless Vector)
  • Mounting: DIN Rail
  • Nominal Input Voltage: 380 VAC, 415 VAC, 480 VAC
  • AC Voltage: 380-480 VAC
  • Frequency: 500 Hz
  • Frame Size: D
  • Protection Rating: IP20
  • Dynamic Braking: Included
  • Height: 12.07 "
  • Width: 7.09 "
  • Depth: 6.56 "
  • Net Weight: 9.48 lbs
  • Gross Weight: 9.48 lbs
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение, учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?

Если вы не нашли продукцию бренда WEG Electric на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.

Заказать товар Заказать товар
WEG Electric CFW500D24P0T4DB20
Drives, CFW500 Series Item # CFW500D24P0T4DB20 CFW500 24A 15HP DB 3PH 460V, J2 USB Communication Port Available with Plug‑In Module All VSDs are Factory Tested at Full Load Conditions and Maximum Operational Temperature Sensorless or Closed Loop Vector Control, VVW or Scalar V/f Expansible Number of Inputs and Outputs as well as Functions Using Plug‑In Modules with Plug‑and‑Play Philosophy With modern design, the variable speed drive CFW500 is a high performance VSD for applications that require speed and torque control of three‑phase induction motors. The equipment has sensorless vector control, closed loop vector control or scalar V/f. It also has SoftPLC, which adds PLC (programmable logic controller) functions, Pump Genius, which adds dedicated functions for pumping systems and selectable plug‑in modules, that provide a flexible and optimized solution for any application.
