Технические характеристики WA72X7324U
Раздел
Напольное крепление
Подраздел
Wiegmann
Вес
-
Material: Steel
-
Composition: Metallic
-
NEMA Rating: NEMA 12
-
Number of Doors: 2
-
Cover Design: Hinged
-
Latching Mechanism: 3 Point Locking Handle
-
Panel Included: No
-
Nominal Height: 72 "
-
Nominal Width: 73 "
-
Nominal Depth: 24 "
-
Approvals: CSA, UL
-
Comments: Fits AB 1494D, F & V, ABB, C-H C361 & C371, GE STDA, and Square D Class 9422 except bracket mounts.
-
Net Weight: 970 lbs
-
Gross Weight: 970 lbs
-

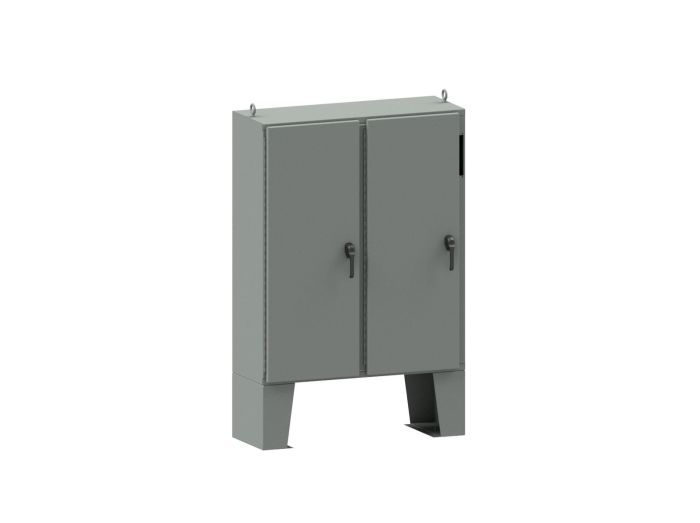

Description: N12 Two Door Floor-Mount Right Flanged Disconnect 72X73X24 Carbon Steel - Gray
-
Manufacturer Part Number: WA72X7324U
-
Manufacturer: Wiegmann
-
Product Series: WAX-U
-
Family Series: Wiegmann Enclosures, WAX-U Series
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о
стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение,
учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?
Если вы не нашли продукцию бренда Wiegmann на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.
Заказать товар
Заказать товар
Wiegmann WA72X7324U
Enclosures, WAX-U Series
Item #
WA72X7324U
N12 2DR FM RT FLG DISCONN 72X73X24 CS-GR
Nema Type 12
UL E64791; CSA LL66078
Fabricated From 10 Gauge Steel
Gray Polyester Powder Finish
2 Continuous Hinge Doors
WAX‑U Series enclosures are designed for use with the following:
Allen Bradley Bulletin 1494F flange‑mounted disconnect switches and Bulletin 1494D flange‑mounted operators for circuit breakers, Allen Bradley 1494V variable depth flange‑mounted disconnect switches and circuit breakers mechanisms.
ABB flange‑mounted variable depth operating mechanisms for disconnect switches and circuit breakers
Cutler‑Hammer/Westinghouse Type C361 flange‑mounted variable depth operating mechanisms with disconnect switches and Type C371 circuit breakers and circuit breaker operating mechanisms. Also type SM safety handle mechanisms and Flex Shaft handle mechanisms for circuit breakers
GE Type STDA flange handles and variable depth operating mechanisms for disconnect switches and circuit breakers. Also Spectra Flex cable operators for circuit breakers
I‑T‑E Max‑Flex flange‑mounted variable depth operating handle for disconnect switches and circuit breakers as well as some fixed depth operators for disconnect switches
Square D Class 9422 disconnect switches with flange‑mounted variable depth operating mechanisms or cable mechanisms and class 9422 flange‑mounted variable depth operating mechanisms or cable mechanisms
Continuously Welded Seams
Grounding Provisions Provided
15‑Inch Floor Stands Welded to Enclosure
Print Pocket Provided
Optional Back Panel
Wiegmann
