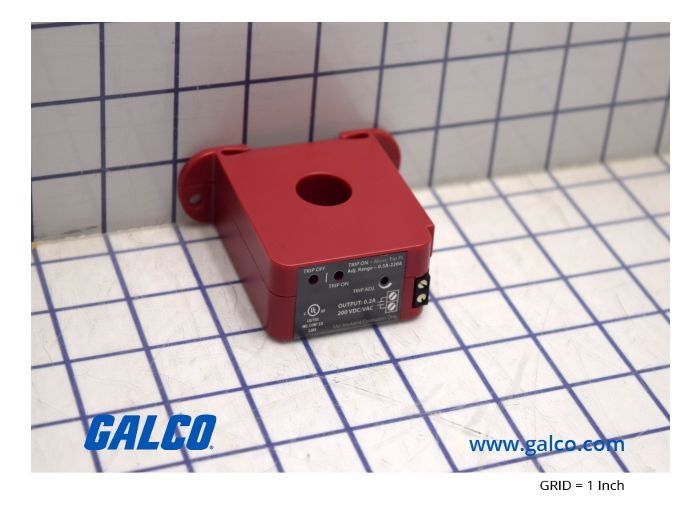

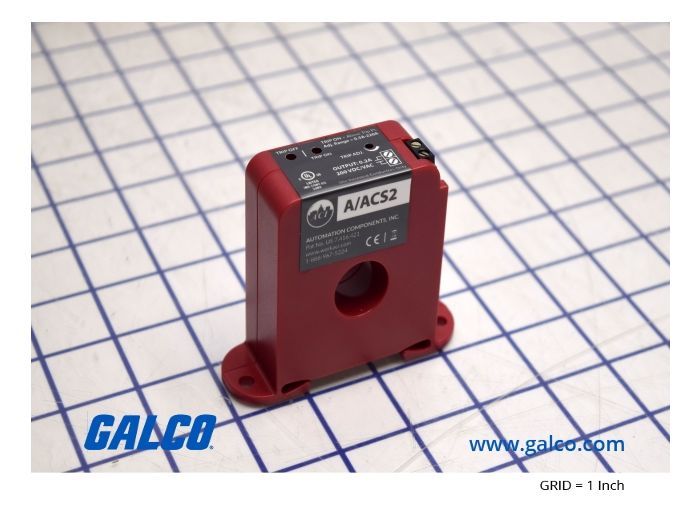

ACI-Automation Components 142380
Артикул:
142380
Изготовитель:
ACI-Automation Components
✅ Под заказ
ЗАКАЗАТЬ
ЗАКАЗАТЬ
Технические характеристики 142380
Раздел
Текущий
Подраздел
ACI-Automation Components
Вес
-
Description: Split-Core, 0-10Vdc, Sensor
-
Split Core: Yes
-
Power Supply: Self-Powered
-
Window Size: 0.75 "
-
Output: 0-10 VDC
-
Current Rating: 0-250 A
-
Response Time: 300 ms
-
Frequency: 50-600 Hz
-
Terminals: Top
-
Net Weight: 0.21 lbs
-
Gross Weight: 0.21 lbs
-
Manufacturer Part Number: 142380
-
Manufacturer: ACI-Automation Components
-
Product Series: A/SCTV2
-
Family Series: ACI-Automation Components Sensors, A/SCTV2 Series
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о
стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение,
учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?
Если вы не нашли продукцию бренда ACI-Automation Components на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.
Заказать товар
Заказать товар
ACI-Automation Components 142380
Sensors, A/SCTV2 Series
Item #
A/SCTV2-250
Split-Core, 0-10Vdc, Sensor
The Voltage Output Analog Current Sensors are designed for use in any AC current monitoring application in which you are looking to monitor a particular piece of equipment for proper operation. All voltage output current sensors use an "Average" current measuring method and should be used in applications where a pure Sinusoidal AC waveform that has very little or no distortion/noise on the conductor being monitored. Applications may include monitoring a resistive type load such as an incandescent light bulb or heating element as well as any single speed linear load. Voltage Output current sensors are available in both solid and split‑core versions which also includes a Patented 35 mm Din Rail mounting foot for easy installation in panel mount applications. The solid‑core versions are a great choice for new installations or OEM applications in which cost sensitivity, lower trip points and environmental issues like dust and moisture may be of concern. The split‑core version of the current sensors work great in retrofit applications and for use on service technicians vehicles since one or two parts will work in most applications and can be easily installed without disconnecting any wires. For best results, the voltage output current sensors should not be used in applications with switching power supplies or variable speed drives due to the limited operating frequency range. In applications where variable speed drives or waveforms include distortion/noise, ACI recommends the use of the A/CTA2‑RMS or A/SCTA2‑RMS Series sensors where you need to supply 24 VDC power to the current sensors with a 4‑20 mA signal. A 249 Ohm or 499 Ohm 1 Watt resistor can be used to convert the 4‑20 mA signal into a useable 1‑5 or 2‑10 VDC output signal at your building management system or PLC.
