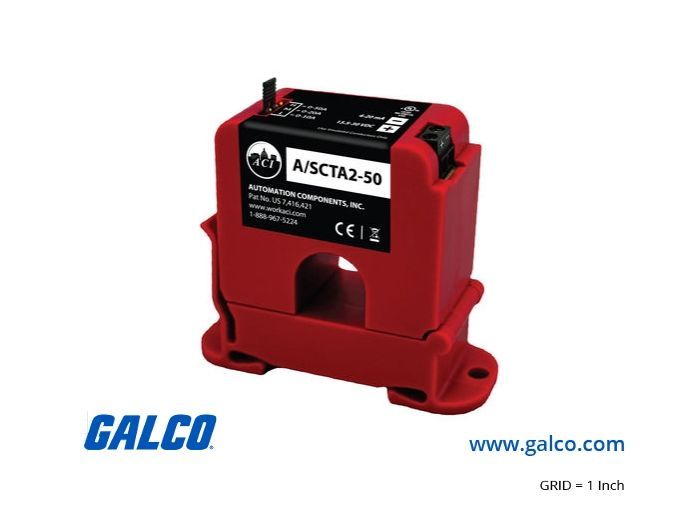

ACI-Automation Components 142376

Артикул: 142376

Новый продукт Запросить стоимость и остатки 454 € цена может отличаться Новый продукт OEM Запросить стоимость и остатки по запросу Не использованный в упаковке Raxwell Запросить стоимость и остатки по запросу Восстановленный товар Запросить стоимость и остатки по запросу

✅ Под заказ

ЗАКАЗАТЬ ЗАКАЗАТЬ

Технические характеристики 142376

Раздел

Текущий

Подраздел

ACI-Automation Components

Вес

Description: Split-Core, 4-20Ma, Sensor
Split Core: Yes
Power Supply: 12-30 VDC
Window Size: 0.75 "
Output: 4-20 mA
Current Rating: 0-5 A
Response Time: 600 ms
Frequency: 40-1,000 Hz
Output Limit: 25 mA
Terminals: Top
Approvals: CE, cULus
Net Weight: 0 lbs
Gross Weight: 0 lbs
Manufacturer Part Number: 142376
Manufacturer: ACI-Automation Components
Product Series: A/SCTA2
Family Series: ACI-Automation Components Sensors, A/SCTA2 Series

В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о стоимости наших товаров только по запросу.

Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение, учитывающее все ваши потребности и спецификации заказа.

Не нашли продукцию?

Если вы не нашли продукцию бренда ACI-Automation Components на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.

Заказать товар Заказать товар

ACI-Automation Components 142376

Sensors, A/SCTA2 Series Item # A/SCTA2-5 Split-Core, 4-20Ma, Sensor The 4‑20 mA Output Analog Current Sensors are designed for use in any AC current monitoring application in which you are looking to monitor a particular piece of equipment. The "Average" style current sensors should be used in applications where the Sinusoidal waveform has no distortion or noise on the conductor being monitored. Applications may include monitoring a resistive type load such as an incandescent light bulb, heating element as well as any single speed linear load. Note that the "True RMS" sensors are able to be used in all applications since the "True RMS" current sensors provide the best overall accuracy and should be used in applications which includes Variable Frequency Drives, Switching Power Supplies, Computers and Data Centers, Electronic Ballasts, SCR's, and Variable Speed Loads. For currents monitored above 250 Amps, the CTA2‑5 and SCTA2‑5 are ideal for use with a step down Ratio:5A Output CT (Current Transformer) in stepping down current in a monitored conductor to a proportional 0 to 5A output signal. The current sensors are available in both solid and split‑core versions which also includes a Patented (Pat. No. US 7,416,421) 35 mm Din Rail mounting foot for easy installation in panel mount applications. The solid‑core versions are a great choice for new installations or OEM applications in which cost sensitivity, lower trip points and environmental issues like dust and moisture may be of concern. The split‑core version of the current sensors work great in retrofit applications and for use on service technicians vehicles since one or two parts will work in most applications and can be easily installed without disconnecting any wires.
