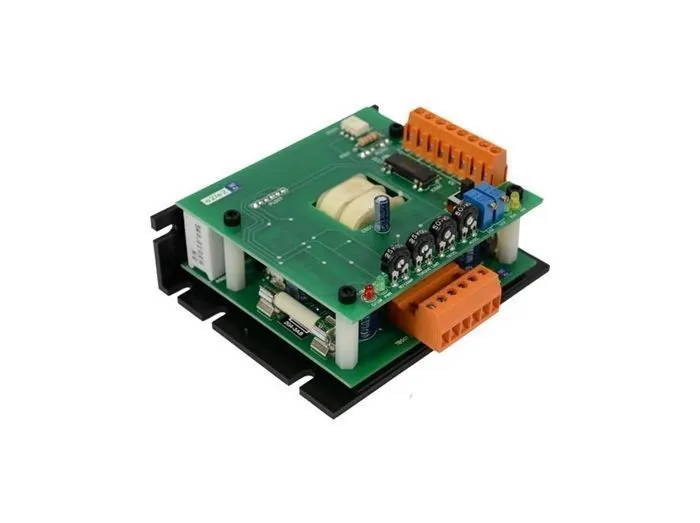

American Control Electronics LGM103-3
Артикул:
LGM103-3
Изготовитель:
American Control Electronics
✅ В наличии
ЗАКАЗАТЬ
ЗАКАЗАТЬ
Технические характеристики LGM103-3
Раздел
Постоянный ток
Подраздел
American Control Electronics
Вес
-
Manufacturer Part Number: LGM103-3
-
Manufacturer: American Control Electronics
-
Product Series: LGM
-
Family Series: American Control Electronics Drives, LGM Series
-
Description: 1Q SCR Chassis 115V 3 w/Field,Iso
-
AC Voltage: 115 VAC
-
Output Armature Voltage (DC): 0-90 VDC
-
Max Armature Current (DC): 10 A
-
Nominal Field Voltage (DC): 125 VDC, 48 VDC
-
Nominal Input Voltage: 120 VAC
-
Output Field VDC: 100 VDC, 50 VDC
-
Field Supply: Fixed
-
Regen: No
-
Feedback: Armature
-
Operator Controls: Built In
-
Approvals: cUL, UL
-
Nominal Armature VDC: 90 VDC
-
Net Weight: 0.8 lbs
-
Gross Weight: 0.8 lbs
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о
стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение,
учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?
Если вы не нашли продукцию бренда American Control Electronics на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.
Заказать товар
Заказать товар
American Control Electronics LGM103-3
Drives, LGM Series
Item #
LGM103-3
1Q SCR Chassis 115V 3 w/Field,Iso
Inhibit (Normally Closed or Open)
Current Limit, Inhibit, Run, and Power LEDs
1.37 Form Factor
2% Base Speed Regulation
60:1 Speed Range
With the LGM series, the features list just keeps growing. With its Burr Brown linear isolated input, the LGM series can accept a grounded 4‑20 mA or 0‑10 VDC signal from any Programmable Logic Control (PLC) or motion card to control motor speed. With its isolated inputs, the LGM series can easily be enabled or inhibited using NPN open collector transistors, dry contact relays, or switches. Status LEDs on the drive also allow for convenient monitoring. With separate models designed to accept either 115 or 230 VAC power and all the standard features offered by our 1Q drive family, this series can effortlessly be incorporated into any demanding application where electrical isolation is needed.
