Технические характеристики CE6FWG
Раздел
Security
Подраздел
ALTRONIX
Вес
1.1475
-
Item: Midspan Power Injector
-
Camera Inputs: 1
-
Color: Black
-
Depth: 7 1/4"
-
Features: Hi-Poe/Poe+/Poe Connectivity, Integral Surge Protection, Midspan Port, Provides Power And Data Up To 100M Away
-
For Use With: Poe Cameras And Devices
-
Height: 1 39/64"
-
Includes: Poe Injector
-
Input Voltage: 115/230V AC
-
Length: 7 1/4"
-
Maximum Frequency: 60 Hz
-
Maximum Input Current: 1.2A
-
Maximum Input Voltage: 115/230V AC
-
Maximum Output Power: 60 W
-
Maximum Output Voltage: 56V DC
-
Mounting: Desktop, Rack
-
Ndaa Compliant: Yes
-
Output Ports: 1 x 10/100/1000Base-T
-
Output Voltage: 56V DC
-
Overall Depth: 60
-
Overall Width: 4"
-
Material: 4 in
-
Standards: CE, UL 60950-1
-
Height (cm): 4.09
-
Length (cm): 18.42
-
Width (cm): 10.16
-
Country Of Origin: US
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о
стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение,
учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?
Если вы не нашли продукцию бренда ALTRONIX на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.
Заказать товар
Заказать товар

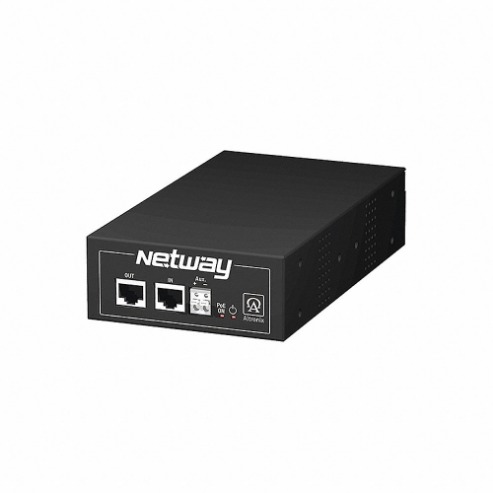

ALTRONIX CE6FWG
Midspan power injectorssupply power and pass on data (text, audio and video) when connected directly with Power-over-Ethernet (PoE) devices or with non PoE devices through a separate adapter. Altronix NetWay1D indoor single port midspan injector uses Power-over-Ethernet (PoE) technology for enabling network cables to carry both electrical power & data simultaneously. The PoE compliant devices can be at a maximum distance of 100 m from the midspan NetWay1D injector. The NetWay1D power injector gets its power supply through an IEC 320 connector (located at the backside of the device), having a voltage rating of 115VAC (at 1.2A) and 230VAC (at 0.75A). This device delivers PoE (15W), PoE+ (30W) and Hi-PoE (60W) power outputs using all 4 pairs of ethernet cable (CAT5e) at a data transmission speed of 10 / 100 / 1000 Mbps. It is also equipped with an auxiliary power connector having 56VDC / 60W output rating for safely transmitting data and power over a coax cable of length up to 500 m. This auxiliary Class 2 rated power limited output is used by Altronix eBridge Plus receivers to provide a cost effective way for replacing legacy analog devices with new IP devices / cameras over existing coax cables. NetWay1D power injector reduces extra wiring as it transmits data & power over ethernet / data cable that is already in place instead of installing additional power sockets for each of the devices. It has a lightweight & compact body for installation in indoor locations with limited space. This injector comes with numerous safety features like surge protection, auto-detection & protection facility of legacy non-PoE cameras / devices and LED indicators for port status, PoE status & IP link status.Raptor Supplies also offersNetway1XPmidspan power injector having shutdown triggers for manually shutting down power transmission to the PoE devices.
