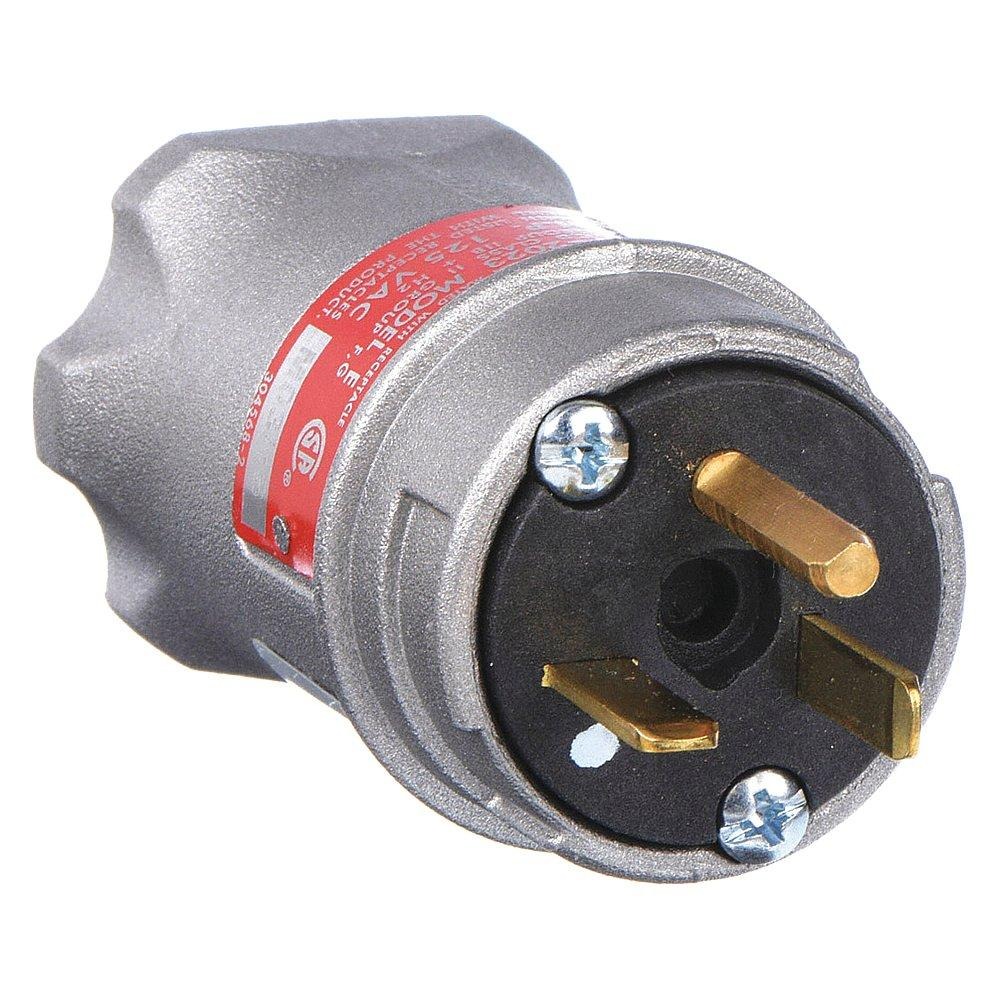

APPLETON ELECTRIC AA3XXZ

Артикул: AA3XXZ
Изготовитель: APPLETON ELECTRIC
✅ Под заказ
ЗАКАЗАТЬ ЗАКАЗАТЬ

Технические характеристики AA3XXZ

Раздел
Electrical
Подраздел
APPLETON ELECTRIC
Вес
0.2025
  • Item: Plug
  • Blade Material: Brass
  • Body Length: 2.78"
  • Connection Orientation: Straight
  • Current Rating: 20A
  • Face Dia.: 1 3/4"
  • For Environment: Hazardous Location
  • For Maximum Cable Dia.: 0.639"
  • For Minimum Cable Diameter: 0.538"
  • Grounding: Grounded
  • Hazardous Location Specification: Class I, Div 1 And 2, Group B, C, D, Class Ii, Div 1 And 2, Group F, Class Iii, Div 1 And 2
  • Horsepower Rating: 1 hp
  • Housing Color: Gray
  • Housing Material: Copper Free Aluminum
  • Insulation Material: Thermoplastic
  • Ip Rating: Not Rated
  • Material: Copper Free Aluminum
  • Maximum Wire Size: Not Applicable
  • Nema Plug Configuration: 5-20P
  • Nema Rating: 3, 3R, 7BCD, 9FG
  • Nema Type: 5-20P
  • No. Of Blades: 3
  • Number Of Poles: 2
  • Number Of Wires: 3
  • Outside Dia.: 1 13/25"
  • Overall Length: 2.78"
  • Phase: Single
  • Polarized: No
  • Resistance Properties: Corrosion Resistant
  • Shrouded: No
  • Ul 94 Flammability Rating: Not Rated
  • Voltage: 125V AC
  • Voltage Rating: 125V AC
  • Wire Connection Type: Screw Terminals
  • Wiring Style: Standard
  • Height (cm): 9.91
  • Length (cm): 12.19
  • Width (cm): 10.92
  • HS Code: 8536698000
  • Country Of Origin: MX
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение, учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?

Если вы не нашли продукцию бренда APPLETON ELECTRIC на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.

Заказать товар Заказать товар
APPLETON ELECTRIC AA3XXZ
Ideal for use with electrically operated devices such as lighting systems, conveyors, heaters & motor-generator sets, Copper-free aluminium construction makes it ideal for hazardous locations, Pressure-type solderless lugs on all terminals to facilitate wiring, Longer plug housing for better gripping and easier plug insertion / withdrawal, Twisting plug locks in place and prevents accidental pull out, Rugged cable grip exceeds UL Standard 1203, Ideal for use with electrically operated devices such as lighting systems, conveyors, heaters & motor-generator sets, Copper-free aluminium construction makes it ideal for hazardous locations, Pressure-type solderless lugs on all terminals to facilitate wiring, Longer plug housing for better gripping and easier plug insertion / withdrawal, Twisting plug locks in place and prevents accidental pull out, Rugged cable grip exceeds UL Standard 1203
