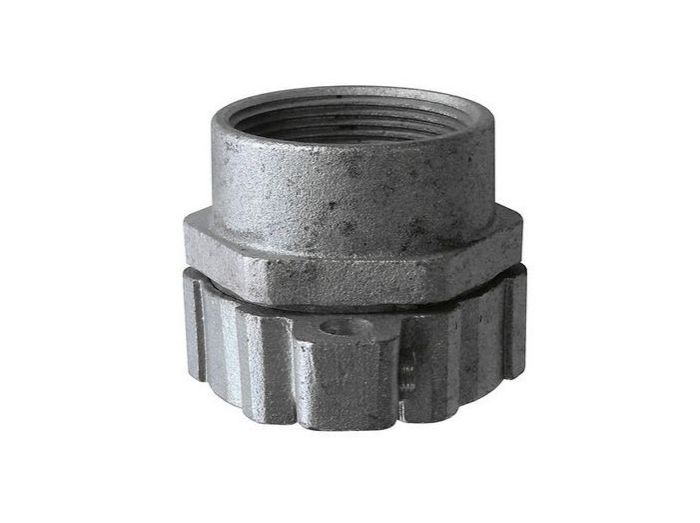

Appleton 4Q250FML

Артикул: 4Q250FML
Изготовитель: Appleton
✅ Под заказ
ЗАКАЗАТЬ ЗАКАЗАТЬ

Технические характеристики 4Q250FML

Раздел
Комбинация
Подраздел
Appleton
Вес
  • Manufacturer Part Number: 4Q250FML
  • Manufacturer: Appleton
  • Product Series: Ground Tite 4Q
  • Family Series: Appleton Couplers, Ground Tite 4Q Series
  • Description: 2-1/2 IN COMBO CPLG LFMC/RMC
  • Conduit Type: Liquidtight Flexible Metal Conduit to IMC (Intermediate Metal Conduit), Liquidtight Flexible Metal Conduit to RMC (Rigid Metal Conduit)
  • Connection Type: Screw-In
  • Trade Size: 2.5
  • Grounding: Yes
  • Protection Rating: Liquid Tight, Rain Tight, Oil Tight, Concrete Tight
  • Composition: Malleable Iron
  • NEMA Rating: NEMA 4
  • Hazardous Location: Yes
  • Approvals: CSA, UL
  • Net Weight: 0 lbs
  • Gross Weight: 0 lbs
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение, учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?

Если вы не нашли продукцию бренда Appleton на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.

Заказать товар Заказать товар
Appleton 4Q250FML
Couplers, Ground Tite 4Q Series Item # 4Q250FML 2-1/2 IN COMBO CPLG LFMC/RMC Positive grounding type Liquidtight flexible metal conduit to threaded rigid conduit and IMC Grounding lug is cast as an integral part of malleable iron gland nut. Provides high ground fault withstand capability Furnished with locknut and KO sealing ring Liquidtight/Raintight/Oiltight/Concretetight UL Listed NEMA Type 4 when installed into a NPT threaded entry or UL Listed conduit hub (sizes 1‑1/4" and larger require thread sealant) O‑Z/Gedney Ground‑Tite 4Q Series liquidtight combination couplings have female NPT threaded hubs. They are used to secures, ground and seal liquidtight flexible metal conduit and terminate bonding conductor runs externally alongside liquidtight. The compact, slim diameter design results in a connector that offers a small turning radius.
