Технические характеристики CPS152111SA
Раздел
Штырь и гнездо
Подраздел
Appleton
Вес
-
Manufacturer Part Number: CPS152111SA
-
Manufacturer: Appleton
-
Product Series: CPS Factory Sealed
-
Family Series: Appleton Plugs & Receptacles, CPS Factory Sealed Series
-
Description: Pin and Sleeve Receptacle Assembly, Type Feed Through, Voltage Rating 125 to 250 VAC, Current Rating 20 Ampere, Power Rating 1 HP at 18 VDC, Number of Poles 3, Number of Wires 2, Hub Size 1/2 Inch, Box Type Single Gang, Cover Type Spring, Mating Plug
-
Connection Type: Receptacle
-
Connection Description: Angled
-
Current Rating: 20 A
-
Voltage: 250 V
-
Number of Poles: 3
-
Number of Wires: 2
-
Lockout-Tagout: No
-
Auxiliary Contact: None
-
Built-In Strain Relief: Yes
-
Material: Metallic
-
Terminal Type: Screw
-
Approvals: UL
-
Comments: (2) 1/2 " Hubs
-
Net Weight: 0 lbs
-
Gross Weight: 0 lbs
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о
стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение,
учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?
Если вы не нашли продукцию бренда Appleton на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.
Заказать товар
Заказать товар

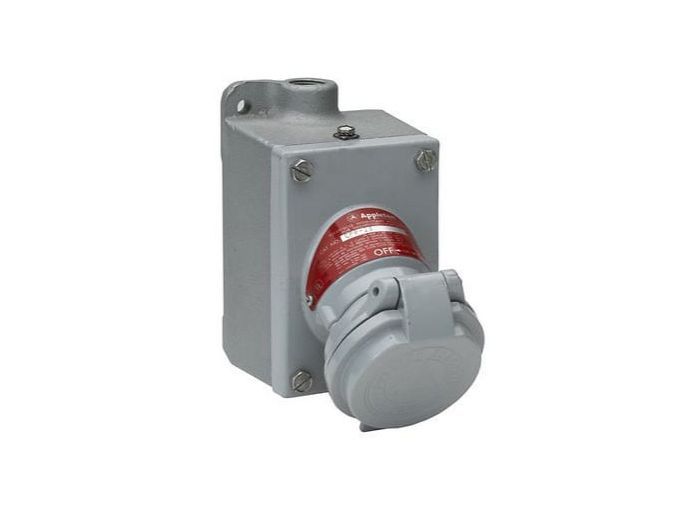

Appleton CPS152111SA
Plugs & Receptacles, CPS Factory Sealed Series
Item #
CPS152111SA
20A 2W3P RECEPT EXP PRF ALUM
Contender CPS Factory Sealed 20 Amp Pin and Sleeve Receptacles provide explosionproof protection for stationary or portable equipment in hazardous, damp or corrosive locations. It features delayed action construction; to operate, insert plug to first stop, move Slide‑Lok slide to the right and push plug fully forward to energize. The Contender CPS meets all UL and CSA requirements for ground fault protection in hazardous locations when the GFCI cover is used.
