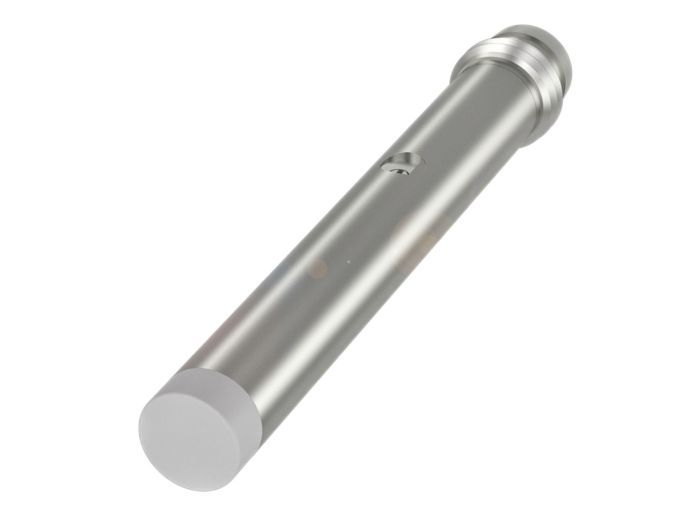

Balluff BCS0022

Артикул: BCS0022
Изготовитель: Balluff
✅ Под заказ
ЗАКАЗАТЬ ЗАКАЗАТЬ

Технические характеристики BCS0022

Раздел
Емкостный приближения
Подраздел
Balluff
Вес
  • Manufacturer Part Number: BCS0022
  • Manufacturer: Balluff
  • Product Series: Capacitive Proximity Sensors
  • Family Series: Balluff Sensors, Capacitive Proximity Sensors Series
  • Description: Dimension = 6.5 x 54 mm Series = G06 Installation = non-flush Connection = Connector, M8x1-Male, 3-pin Switching output = PNP Normally open (NO) Switching frequency = 100 Hz Range = 0.1...3 mm Sensitivity = Switching
  • Diameter: 6.5 mm
  • DC Voltage: 11-30 VDC
  • Voltage: 11-30 VDC
  • Nominal Voltage: 12 VDC, 24 VDC
  • Sensing Range: 3 mm
  • Connection Type: 3 Pin M8 Connector
  • Output Type: PNP
  • Output Circuit: NO
  • Composition: Metallic
  • Enclosure: IP65
  • Approvals: CE, cULus, WEEE
  • Comments: Non-Flush
  • Net Weight: 0 lbs
  • Gross Weight: 0 lbs
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение, учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?

Если вы не нашли продукцию бренда Balluff на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.

Заказать товар Заказать товар
Balluff BCS0022
Sensors, Capacitive Proximity Sensors Series Item # BCS0022 BCS G06T4D2-PSM30G-S49G Balluff’s patented Smart Level technology of the sensors compensates for moisture, foam, and adhesion of all sorts – even through glass and plastic walls up to 10 mm thick. This makes their sensors ideal as fill-level sensors for conductive media. And guarantee you high application security. Their sensors are available in diverse designs, even especially small ones. As adhesive sensors, they fit flexibly to the housing shape and are easily removable. Capacitive sensors detect objects and the fill level of: •    All non-conducting materials •    Liquids •    Pellets •    Powders directly or through a container wall
