Leeson 114317.00

Артикул: 114317.00
Изготовитель: Leeson
✅ Под заказ
ЗАКАЗАТЬ ЗАКАЗАТЬ

Технические характеристики 114317.00

Раздел
Переменный ток
Подраздел
Leeson
Вес

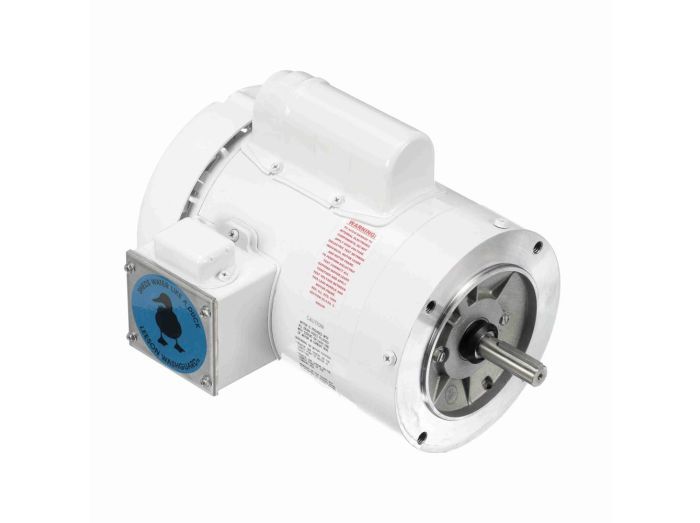

  • Description: Motor, 1HP, /V, 1725RPM TEFC Washguard
  • Type: Washdown
  • Horsepower: 1 hp
  • Speed: 1,800 RPM
  • RPM: 1,800 RPM
  • Number of Poles: 4
  • Phase: 1
  • NEMA Frame: 56C
  • Nominal Voltage: 120 VAC, 208 VAC, 240 VAC
  • Enclosure: Totally Enclosed Fan Cooled
  • Mounting: C-Face Footed
  • Current Rating: 6.4 A
  • Service Factor: 1.15
  • Composition: Steel
  • Overload Protection: None
  • Length: 12.19 "
  • Approvals: CSA, UL
  • Net Weight: 32 lbs
  • Gross Weight: 32 lbs
  • Manufacturer Part Number: 114317.00
  • Manufacturer: Leeson
  • Product Series: Washguard
  • Family Series: Leeson Motors, Washguard Series
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение, учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?

Если вы не нашли продукцию бренда Leeson на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.

Заказать товар Заказать товар
Leeson 114317.00
Motors, Washguard Series Item # 114317.00 Motor, 1HP, /V, 1725RPM TEFC USDA‑approved epoxy painted motors Stainless steel motors Encapsulated stainless steel motors available NEMA and IEC flange motors Three phase, single phase and DC washdown duty motors Applications: Designed to meet the demanding washdown conditions that you may find in food processing plants, chemical processing, pharmaceutical plants and the beverage and brewing industries. AC and DC washdown gearmotors Rigid base and C face mount types BISSC approved designs Forsheda shaft seals and Protech bearing isolators used to seal motor shafts 3‑year warranty on encapsulated and Premium efficient models Washdown brakemotors and pump motors available UL recognized and CSA certified
