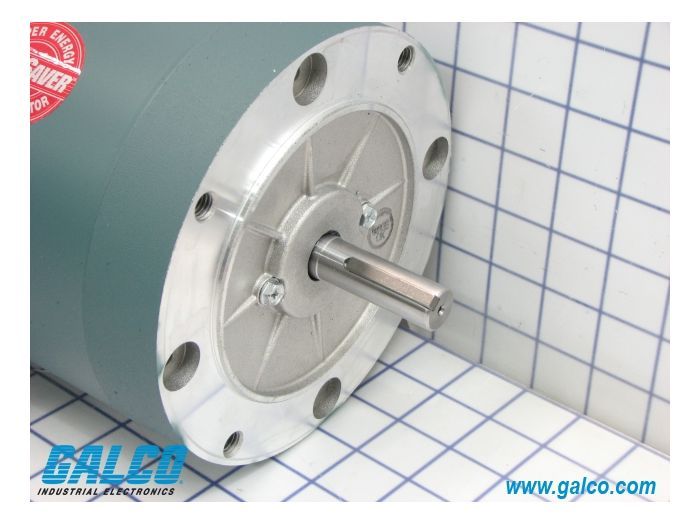

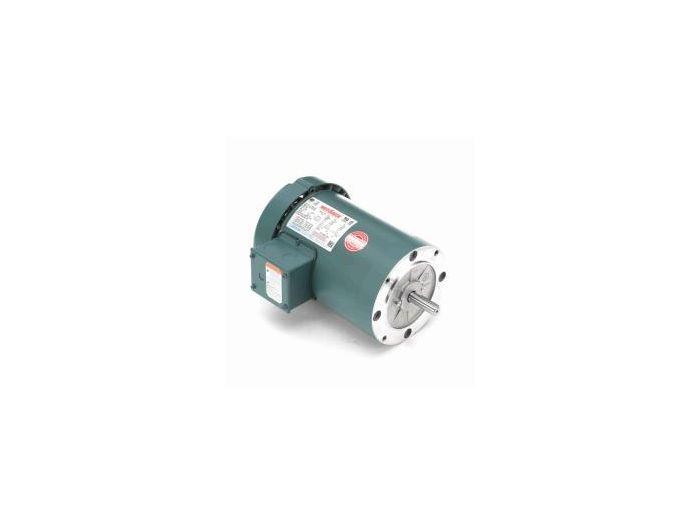

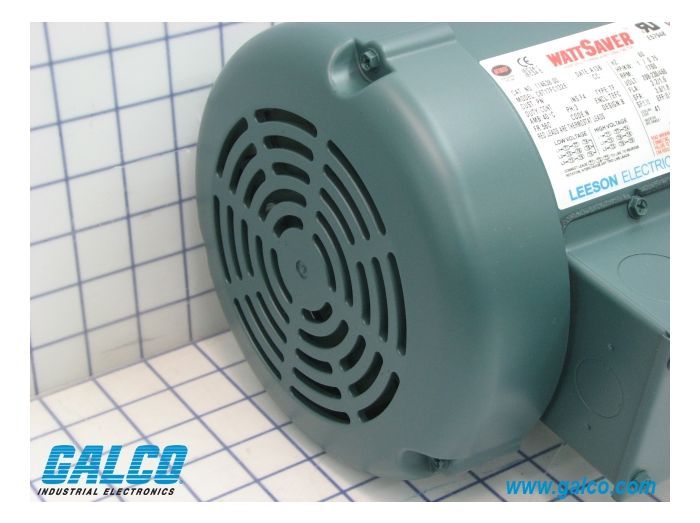

Description: Motor, 1HP, 208-230/460V, 1760RPM TEFC Wattsaver
-
Type: General Purpose
-
Horsepower: 1 hp
-
Speed: 1,800 RPM
-
RPM: 1,800 RPM
-
Number of Poles: 4
-
Phase: 3
-
NEMA Frame: 56C
-
Enclosure: Totally Enclosed Fan Cooled
-
Mounting: C-Face Less Base
-
Current Rating: 3.4 A
-
Service Factor: 1.15
-
Composition: Steel
-
Bearing Type: Ball
-
Length: 12.81 "
-
Approvals: CSA, UL
-
Net Weight: 37 lbs
-
Gross Weight: 37 lbs
-
Manufacturer Part Number: 114638.00
-
Manufacturer: Leeson
-
Product Series: Three Phase C Face
-
Family Series: Leeson Motors, Three Phase C Face Series
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о
стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение,
учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?
Если вы не нашли продукцию бренда Leeson на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.
Заказать товар
Заказать товар
Leeson 114638.00
Motors, Three Phase C Face Series
Item #
114638.00
Motor, 1HP, 208-230/460V, 1760RPM
Standard, EPACT and Premium efficient ratings
Inverter‑rated
Class B insulation systems ‑ 42, 48 and 56 frames
Class F insulation system ‑ 140 frame and higher
Shielded ball bearings for direct coupled applications
Applications: Same applications as used on our general purpose ODP and enclosed, three phase motors, only having NEMA C Face mount, which allows direct mounting to a pump or gear reducer or other direct coupled equipment.
Continuous duty
Dynamically balanced rotors
Torques exceed NEMA performance standards
1‑year warranty on Standard efficient motors
2‑year warranty on EPACT efficient motors
3‑year warranty on Premium efficient motors
UL recognized and CSA certified
