Технические характеристики 116482.00
Раздел
Переменный ток
Подраздел
Leeson
Вес
-
Description: Motor, 1.5HP, 115/208-230V, 3450RPM TEFC Washguard
-
Type: Washdown
-
Horsepower: 1-1/2 hp
-
Speed: 3,600 RPM
-
RPM: 3,600 RPM
-
Number of Poles: 2
-
Phase: 1
-
NEMA Frame: 56HC
-
Nominal Voltage: 120 VAC, 208 VAC, 240 VAC
-
Enclosure: Totally Enclosed Fan Cooled
-
Mounting: C-Face Footed
-
Current Rating: 6.8 A
-
Service Factor: 1.15
-
Composition: Steel
-
Bearing Type: Double Sealed
-
Length: 13.81 "
-
Approvals: CSA, UL
-
Net Weight: 49 lbs
-
Gross Weight: 49 lbs
-
Manufacturer Part Number: 116482.00
-
Manufacturer: Leeson
-
Product Series: Premium
-
Family Series: Leeson Motors, Premium Series
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о
стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение,
учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?
Если вы не нашли продукцию бренда Leeson на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.
Заказать товар
Заказать товар

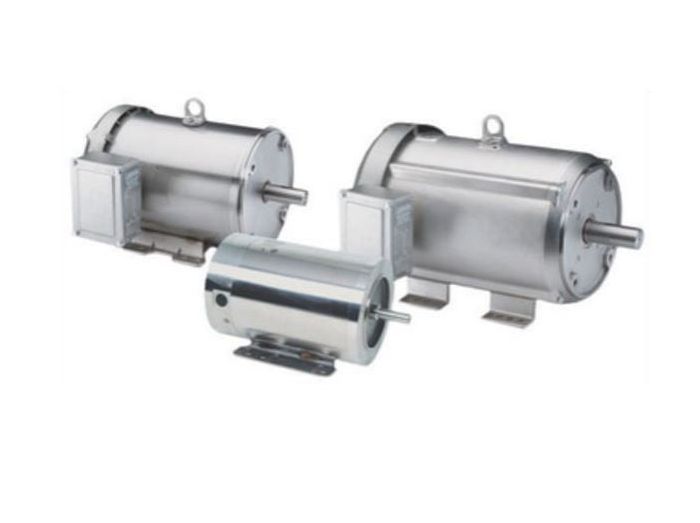

Leeson 116482.00
Motors, Premium Series
Item #
116482.00
Motor, 1.5HP, 115/208-230V, 3450RPM
All exterior components are 300‑series stainless steel
Nothing on the motor's exterior is painted or coated in any way
All sealing components are Viton® for superior chemical resistance
Full fact nameplate is laser etched on the motor frame ‑ no separately attached nameplate to trap dirt or contaminants
Endshields are O‑ring sealed to the frame
Designed specifically to meet the demanding sanitation requirements of the pharmaceutical, food processing and beverage industries. These motors are also ideal in clean room and severe chemical‑processing applications involving frequent washdown with nitric acid and caustic lye. In fact, WASHGUARD All‑Stainless Motors include IEEE 841 severe‑duty features right out of the box! Motors have been tested to and passed the IEC IP‑56 test requirements.
Double lip shaft seals on both ends of TEFC motors (shaft end only on TENV motors)
Removable hydrophobic breathers in opposite shaft endbell and conduit box equalize pressure without allowing moisture to enter
Exterior fastener use minimized reducing the number of entry points for moisture. There are no holes in the frame for attaching a nameplate. Bearing lock screws are located inside the motor and the conduit box mounted screws have been eliminated
Double‑sealed bearings are pre‑lubricated with moisture‑resistant hightemperature grease for long life
Interior coatings applied to rotor and stator protect against corrosion
New conduit box mounting system provides optimum sealing
Ease to clean construction is BISSC Certified for bakery applications
WASHGUARD efficiencies meet EPACT mandates for non‑exempt motors when tested without shaft seals.
Windings are immersed and cured in polyester insulating varnish for extra moisture‑resistance
LEESON's exclusive IRIS™ Inverter‑Rated Insulation System provides extra protection and long life, especially in inverter‑driven applications
Single‑phase motors use Solid State Sinpac® switch ‑ no mechanical switch contacts to corrode and fail.
All Washdown Duty motors have Class F Insulation
Single and three phase motors are UL component recognized ‑ file number E57948, guide number PRGY2.
CSA Energy Efficiency Verification Program, report number EEV 78720‑1
Construction is CSA Certified for safety report number LR33543 and listed under BISSC authorization number 769
