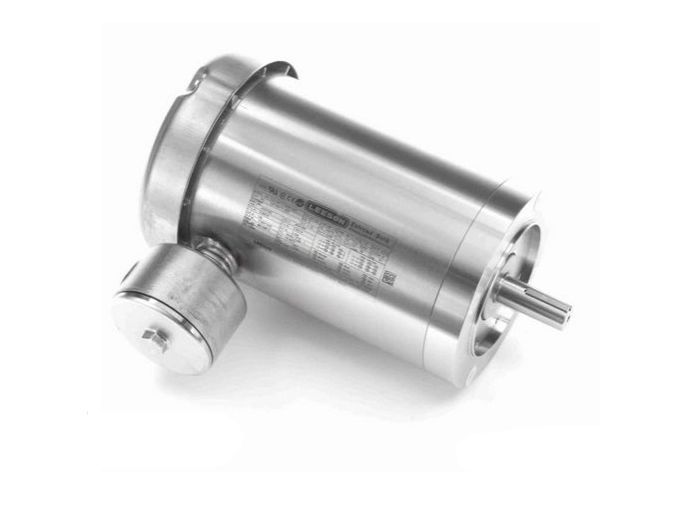

Description: Motor, 2HP, 208-230/460V, 3490RPM TEFC Washguard
-
Type: Washdown
-
Horsepower: 2 hp
-
Speed: 3,600 RPM
-
RPM: 3,600 RPM
-
Number of Poles: 2
-
Phase: 3
-
NEMA Frame: 145TC
-
Nominal Voltage: 208 VAC, 240 VAC, 480 VAC
-
Enclosure: Totally Enclosed Fan Cooled
-
Mounting: Foot Mount, Rigid
-
Current Rating: 5.2 A
-
Service Factor: 1.15
-
Composition: Steel
-
Bearing Type: Double Sealed
-
Length: 12.75 "
-
Approvals: CSA, UL
-
Net Weight: 55 lbs
-
Gross Weight: 55 lbs
-
Manufacturer Part Number: 121910.00
-
Manufacturer: Leeson
-
Product Series: Extreme Duck
-
Family Series: Leeson Motors, Extreme Duck Series
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о
стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение,
учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?
Если вы не нашли продукцию бренда Leeson на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.
Заказать товар
Заказать товар
Leeson 121910.00
Motors, Extreme Duck Series
Item #
121910.00
Motor, 2HP, 208-230/460V, 3490RPM
All exterior components are 300‑Series stainless steel
Protech Bearing isolator used for the output shaft seal
Double Lip Viton shaft seal used on non‑drive output shaft on TEFC motors
Minimal exterior fasteners due to no through‑bolt design and screw on conduit box covers reduces surface areas that may trap contaminants
Double‑sealed bearings are pre‑lubricated with moisture resistant, high temperature grease for long life
These Revolutionary Designed Stainless Steel Motors are built using our "Voice of the customer" design. criteria to withstand extreme washdown and sanitation requirements of the food processing, pharmaceutical, packaging and beverage industries. Our Innovative Hydro Sealed System "HS2™" protects from the "outside‑in" by reducing entrance points of contaminants and eliminates the need for drain plugs and breathers. This proven process also minimizes exterior hardware, which may trap application elements. Our unique Rotor/Cartridge Seal System, "Q‑CAR™" gives quick access to the interior of the motor should the need arise. 300‑Series Stainless Steel used on all exterior surfaces gives ideal protection against severe chemicalprocessing applications and frequent washdown processes using Salt water, Nitric Acids and Solvents.
Rotor/Cartridge, "Q‑CAR™," design for quick access to motor interior (patent pending).
O‑ring sealed openings on conduit box covers and Rotor/Cartridge cover
Rigid Cast Base for rugged applications
Conduit box lead hole location rotatable on TEFC designs
Full fact nameplate is laser etched to the motor frame making frame surface smooth, which eliminates areas that trap contaminants
Ease of clean construction is BISSC certified for bakery applications and motors meet Pharmaceutical Duty specifications
IP 56 Enclosure protection
Motors meet EPACT mandates for non‑exempt motors when tested without shaft seals
Total winding encapsulation using an Epoxy Resin
LEESON's exclusive IRIS™ Inverter‑Rated Insulation System provides extra protection and long life, especially when used in applications driven by an Inverter
3 year warranty
10:1 constant torque operation
Motors are UL component recognized ‑ file number E57948, guide number PRGY2
CSA Energy Efficiency Verification Program, report number EEV 78720‑1
Construction is CSA Certified for safety, report number LR33543 and listed under BISSC authorization number 769
