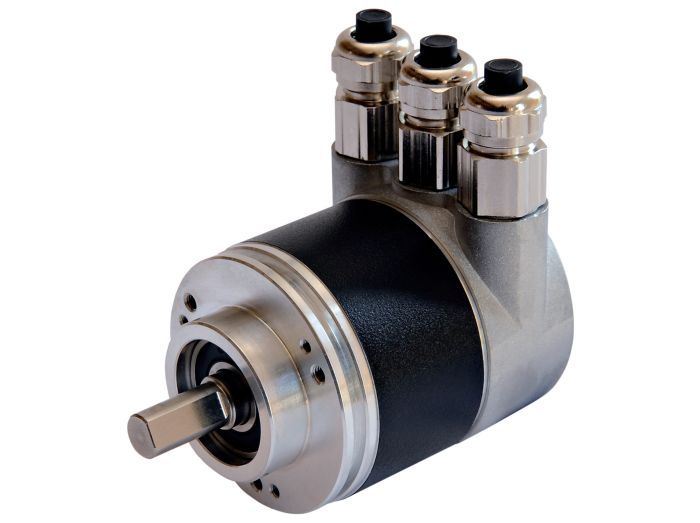

Pepperl Fuchs 514808

Артикул: 514808
Изготовитель: Pepperl Fuchs
✅ Под заказ
ЗАКАЗАТЬ ЗАКАЗАТЬ

Технические характеристики 514808

Раздел
Абсолютный
Подраздел
Pepperl Fuchs
Вес
  • Manufacturer Part Number: 514808
  • Manufacturer: Pepperl Fuchs
  • Product Series: PVS58
  • Family Series: Pepperl Fuchs Encoders, PVS58 Series
  • Description: Absolute Rotary Encoders (Standard), 514808
  • Single Turn Resolution: 13
  • Input Power: 10-30 VDC
  • Protocol: Profibus
  • Shaft/Bore Size: 10 mm
  • Shaft Seal: No
  • Mounting: Shaft
  • Explosion Proof: No
  • Operating Temperature: -40-85 °C
  • Protection Rating: IP65
  • Approvals: CE, cULus
  • Net Weight: 1.2721 lbs
  • Gross Weight: 1.2721 lbs
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение, учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?

Если вы не нашли продукцию бренда Pepperl Fuchs на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.

Заказать товар Заказать товар
Pepperl Fuchs 514808
Encoders, PVS58 Series Item # PVS58N-011AGR0BN-0013 Absolute Rotary Encoders (Standard), Industrial standard housing diameter 58 mm PROFIBUS interface 16 Bit singleturn Speed transfer Extended scaling functions Programmable limit switches Commissioning mode Servo or clamping flange This series of PROFIBUS rotary encoders is based on the modern fast technology of singleturn sampling.The absolute value rotary encoder corresponds to the PROFIBUS Profile for Encoders,Order No. 3.062. Operation is supported based on Class 1 and Class 2.For operation based on Class 1, position data and diagnostic data bytes 1 ... 16 are available. In addition,the direction of the code can be selected as either cw ascending (clockwise rotation, code course ascending) or cw descending (clockwise rotation,code course descending).If the rotary encoder is operated according to Class 2, additional functions to those from Class 1 are available.These include scaling of the resolution per revolution and the overall resolution, as well as the preset function.In addition, expanded diagnostic reporting is supported.Besides, the rotary encoder offers extended functionalities such as speed transfer, extended scaling functions, programmable limit switches and a commissioning mode.The removable connecting hood contains a slide switch for setting the terminating resistor and the rotary switches for setting the address.Assign a fixed address and bus termination to the encoder with this switches.
