Технические характеристики 514816
Раздел
Абсолютный
Подраздел
Pepperl Fuchs
Вес
-
Manufacturer Part Number: 514816
-
Manufacturer: Pepperl Fuchs
-
Product Series: PVM58
-
Family Series: Pepperl Fuchs Encoders, PVM58 Series
-
Description: Multiturn Absolute Encoder, 10-30VDC 30 Bit Multiturn, Solid Shaft Profibus, PVM58I-011AGR0BN-1213
-
Single Turn Resolution: 16
-
Multi Turn Resolution: 14
-
Input Power: 10-30 VDC
-
Protocol: Profibus
-
Mounting: Shaft
-
Operating Temperature: -40-85 °C
-
Protection Rating: IP65
-
Approvals: CE, cULus
-
Net Weight: 0 lbs
-
Gross Weight: 0 lbs
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о
стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение,
учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?
Если вы не нашли продукцию бренда Pepperl Fuchs на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.
Заказать товар
Заказать товар

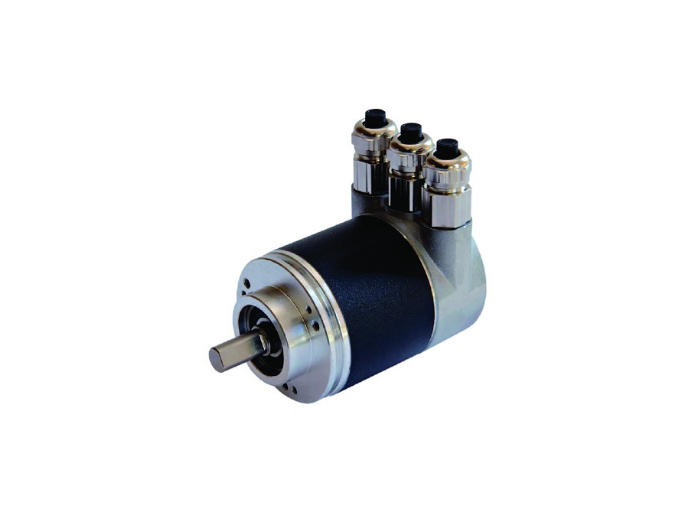

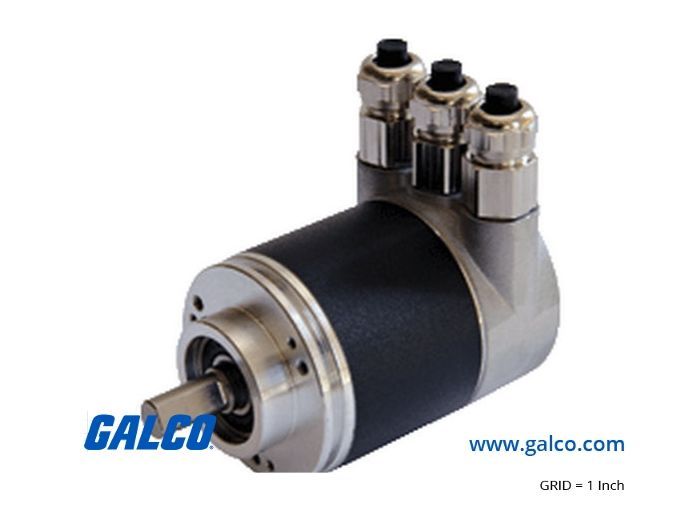

Pepperl Fuchs 514816
Encoders, PVM58 Series
Item #
514816
Multiturn Absolute Encoder, 10-30VDC
Industrial standard housing Ø58 mm
PROFIBUS interface
30 Bit multiturn
Speed transfer
Extended scaling functions
Programmable limit switches
Commissioning mode
Servo or clamping flange
This series of PROFIBUS rotary encoders is based on the modern fast technology of singleturn sampling and the mechanical gear box of the multiturn unit.The absolute encoder corresponds to the PROFIBUS profile for encoders, order no. 3.062.Operation is supported based on Class 1 and Class2.For operation based on Class 1, position data and diagnostic data bytes 1 ... 16 are available.In addition,the direction of the code can be selected as either cw ascending (clockwise rotation, code course ascending) or cw descending (clockwise rotation,code course descending).If the rotary encoder is operated according to Class 2, additional functions to those from Class 1 are available.These include scaling of the resolution per revolution and the overall resolution,as well as the preset function.In addition,expanded diagnostic
reporting is supported.Besides, the rotary encoder offers extended functionalities such as speed transfer, extended scaling functions, programmable limit switches and a commissioning mode.The removable connecting hood contains a slide switch for setting the terminating resistor and the rotary switches for setting the address.Assign a
fixed address and bus termination to the encoder with this switches.The device is designed for shaft mounting and is available in servo flange or clamping flange design.
