Технические характеристики GA80U2004ABM
Раздел
Переменный ток
Подраздел
Yaskawa
Вес
-
Manufacturer Part Number: GA80U2004ABM
-
Manufacturer: Yaskawa
-
Product Series: GA800
-
Family Series: Yaskawa Drives, GA800 Series
-
Description: Drive, AC, 0.75HP, 240V, 3.5A, CT,OP 240Vin 3PH 1.0HP 4.2A VT W/DB Trans 10.2in.Hx5.5in.Wx6.9in.D
-
Phase: 3
-
HP (Constant Torque Rating): 0.75 hp
-
HP (Variable Torque Rating): 1 hp
-
Amps (Constant Torque Rating): 3.5 A
-
Amps (Variable Torque Rating): 4.2 A
-
Brake: DC Injection, Dynamic Braking
-
Closed Loop: Optional
-
AC Line Regenerative: No
-
Operator Controls: Keypad Included
-
Motor Control-Max Level: Closed Loop Vector
-
Mounting: Panel
-
Nominal Input Voltage: 208 VAC, 240 VAC
-
AC Voltage: 200-240 VAC
-
Frequency: 590 Hz
-
Frame Size: 1
-
Protection Rating: IP20
-
Comments: Side-By -Side Mounting, Includes Safe Torque Off, Setup Wizard For Easy Start-up, Bluetoothe Keypad
-
Net Weight: 7.7 lbs
-
Gross Weight: 7.7 lbs
В связи с текущей ситуацией и введенными санкциями, мы предоставляем всю информацию о
стоимости наших товаров только по запросу.
Пожалуйста, свяжитесь с нами, и мы подготовим индивидуальное коммерческое предложение,
учитывающее все ваши потребности и спецификации заказа.
Не нашли продукцию?
Если вы не нашли продукцию бренда Yaskawa на нашем сайте, пожалуйста, свяжитесь с нами. Мы приложим все усилия, чтобы найти и предложить вам необходимый товар в кратчайшие сроки.
Заказать товар
Заказать товар

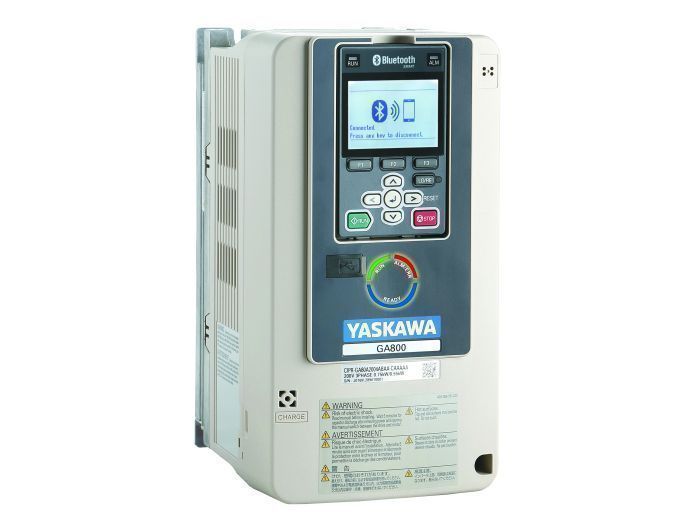

Yaskawa GA80U2004ABM
Drives, GA800 Series
Item #
GA80U2004ABM
Drive, AC, 0.75HP, 240V, 3.5A, CT,OP
The GA800 drive provides the ultimate combination of power, ease of use, flexibility, and performance. Enjoy effortless setup with a high resolution display or Bluetooth connection to your mobile device while using Yaskawa's free DriveWizard Mobile. Control your simple or complex applications connected to networks or discrete / analog signals. Combine all this with modern safety features and a variety of environmental solutions, and you will have to look no further than GA800 for all your variable speed needs.
High resolution multi‑language display with Startup Wizards and Data‑Logging
Bluetooth and DriveWizard Mobile for convenient and easy interaction
DriveWizard Desktop for comprehensive configuration and monitoring
DriveWorks EZ (embedded function blocks) provides extra flexibility, otherwise accomplished in a separate controller.
Closed or open loop vector control for outstanding regulation and torque production
Fast acting motor control functions provide near tripless operation
Popular network connections provide robust control and monitoring with system controllers
Embedded Auxiliary Control Power Input (24 V) maximizes production time and efficiency by maintaining network communication while main power is removed.
Embedded Safe Torque Off minimizes downtime for applications requiring occasional intervention (SIL CL3, PLe, Category 3).
Integrated DC Reactor (30 HP and larger) improves power quality and compatibility
Integrated 12 Pulse version provides a cost effective solution for low harmonics.
Integrated Brake Transistor (up to 125 HP ND) for cost effective heavy braking
Standard conformal coating and Type 12 versions help resist contamination
Made with RoHS compliant materials for environmental compliance
